EBox-RIOLLD-Modbus Series

  • Expandable I/O module for various applications

  • With Digital and Analog Input/Output

  • Users according to their application needs, select 1 to 5 different functions of the expansion module.

Model Type:

Product Type:

Product
ModIO-AI
points: 4
signal: 4~20mA/0-10VDC/NTC
special spec: 12-bit ADC
ModbusIO-01/02: 5 piece Modbus32E-01: Only allowed to install 2 pieces
analog
ModbusIO-01/02
Modbus32E-01

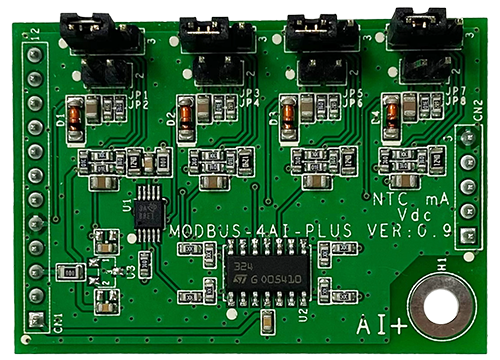

Product
ModIO-AI+
points: 4
signal: 4~20mA/0-10VDC/NTC
special spec: 16-bit ADC
install limit: Only install at LLD-Modbus32E-01
analog
Modbus32E-01
Product
ModIO-AIAO
points: AI:2 / AO:2
signal: AI:4~20mA/0-10VDC/NTC AO:4~20mA or 0-10VDC
special spec: AI: 12-bit ADC
install limit: Only allowed to install one piece
analog
ModbusIO-01/02
Modbus32E-01
Product
ModIO-AO
points: 4
signal: 4~20mA or 0-10VDC
install limit: 5 piece
analog
ModbusIO-01/02
Modbus32E-01
Product
ModIO-DI
points: 4
Input voltage: 5~24VDC
install limit: 5 piece
digital
ModbusIO-01/02
Modbus32E-01
Product
ModIO-DO
points: 4
signal: Open Collector
Load capacity: 5~30 VDC & 200mA
install limit: 5 piece
digital
ModbusIO-01/02
Modbus32E-01
Product
ModIO-Relay
points: DO 2
signal: Ch-01：N.O. / COM Ch-02：N.O./ N.C. / COM
Load capacity: 2A
install limit: 5 piece
digital
ModbusIO-01/02
Modbus32E-01

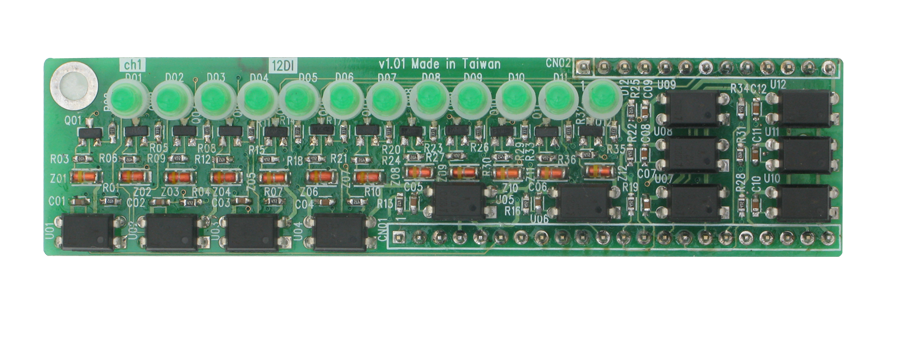

Product
ModIO-12DI
points: 12
Input voltage: 5~24VDC
install limit: 1 piece
digital
Modbus32E-01
Product
ModIO-12DO
points: 12
signal: Open Collector
Load capacity: 5~30 VDC & 200mA
install limit: 1 piece
digital
Modbus32E-01

LLD-Modbus32E-01

Learn more

  • Standard Modbus-TCP/Modbus-RTU communication protocol

  • 24V DC/AC power supply model

  • 10/100 Mbps Ethernet interface

  • Expandable I/O module for various applications

  • Connect and control over 2000 points

  • Provide relay digital output control (Relay DO)

  • Provide open collector digital output control (Open Collector DO)

  • Provide optically isolated digital input control interface (Isolated DI)

  • Provide 12 or 16-bit simulation signal input control interface (AI)

  • Provide 12-bit simulation signal output control interface (AO)

  • RS-485 remote equipment data transmission communication, isolation protection (optional)

  • Expandable DDC Function

    • LLD-ModbusIO-01

    Learn more

  • Standard Modbus-RTU communication protocol

  • RS-485 remote equipment data transmission communication

  • 24V DC/AC power supply mode

  • Expandable I/O module for various applications

  • Provide Relay Output control

  • Provide Open Collector Digital Output control

  • Provide optically isolated digital input control interface (Isolated DI)

  • Provide 12-bit Analog Input control Interface (AI)

  • Provide 12-bit Analog Output control interface (AO)

  • RS-485 isolation protection (optional)

  • Expandable DDC Function

    • LLD-ModbusIO-02

    Learn more

  • RS-485 remote equipment data transmission communication

  • LoRa wireless remote communication interface

  • Expandable I/O module for various applications

  • Standard Modbus-RTU communication protocol

  • Provide Relay Output control

  • Provide Open Collector Digital Output control

  • Provide optically isolated digital input control interface (Isolated DI)

  • Provide 12-bit Analog Input control Interface (AI)

  • Provide 12-bit Analog Output control interface (AO)

  • 24V DC/AC power supply mode

  • Expandable DDC Function

    • LLD-DDC

    Learn more

  • Front-end numerical instant operation

  • Front-end I/O instant control

  • Easy to use function library

  • Compatible with Modbus communication protocol

  • Complete IDE development environment

  • Online code debugging

  • Suitable for LLD-RIO product line
